DC 5V/12V/24V Body Infrared PIR Motion Sensor Switch Human Motion Sensor Detector Switch For LED Light Strip Automatic

98% of buyers enjoyed this product! 474 orders
List price:
You save:
List price:
You save:
Usually takes 15-50 days
Total Price:
Best price guarantee
View cart
  • 100% Money Back Guarantee
  • 100% Secure Payments
Buyer Protection
Safe shopping
Easy returns and refunds
Free Shipping Worldwide
Product Details
Shipping & Payment
Product Details
A style:
100% brand new and high quality
Material: Plastic and metal
Type: Pir Switch
Easy to install and simple to use
Adjust the light soft and stable, no flickering
Mainly use to control LED light lamps and LED Strip
You can conveniently to let the light auto on/off. The switch can detect human body’s infrared , and use infrared to control the load
Users according to actual needs, the human body sensors installed in the appropriate environment
Applications: Incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp and other kinds of loads
Technical Parameters:
Working temperature: -20 to +60  centigrade
Input Voltage: 10.5-16V or 21-32V
Output Voltage: 10.5-16V or 21-32V
Induction distance: 8M
Induction angle: 60 degrees
Output current: <6A
Delay Time: 1-10min(adjustable)

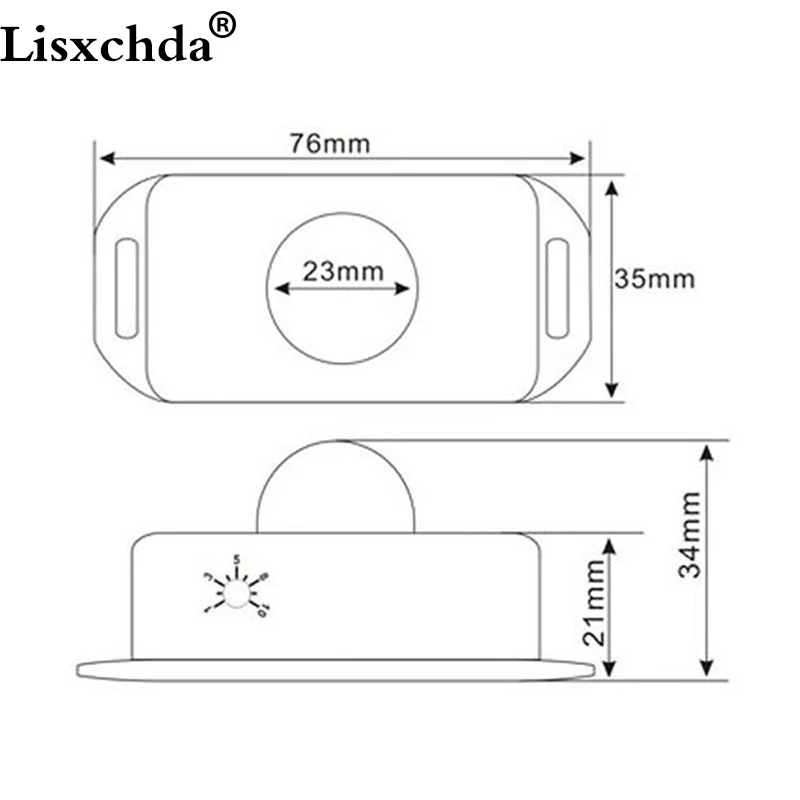

Dimensions: 76 * 45 * 32mm
Direction for use:
    The humen body induction switch is a kind of infrared detection controller ,
adopt infrared detection way to control load switch . Users can according to actual needs ,
installed the humen body sensors in the appropriate environment.
   Connect the load wire at frist ,following by the power wire :
Please ensure short circuit can not occur between connecting wire before you turn on the power :
when detected somebody,the load light will bright ,when people leave time up to the setting of the delay time ,
the load lights will automatically turn off . controller signal output line and input line should be connected correctly.

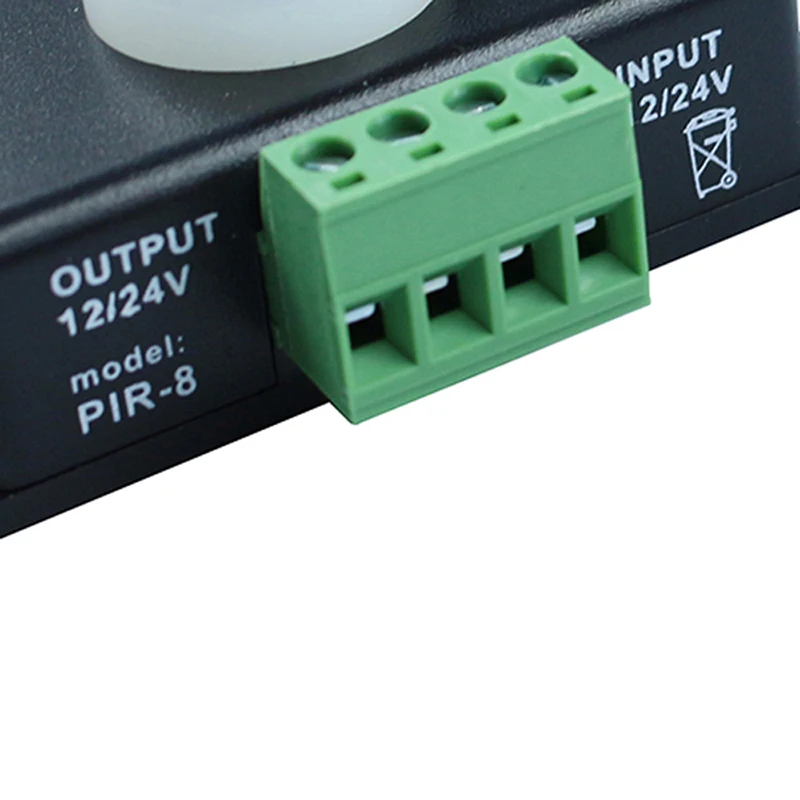

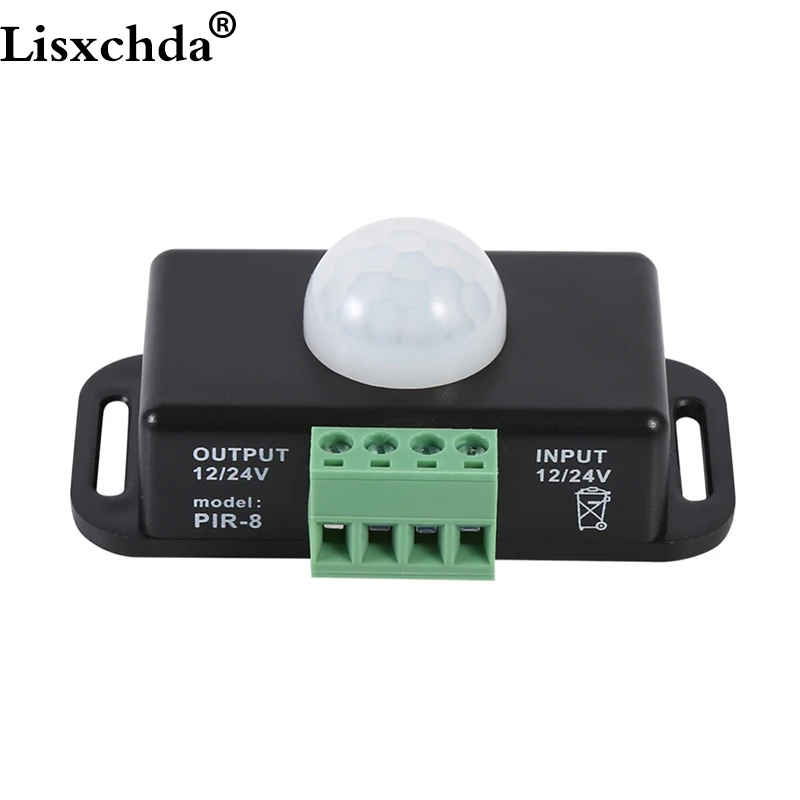

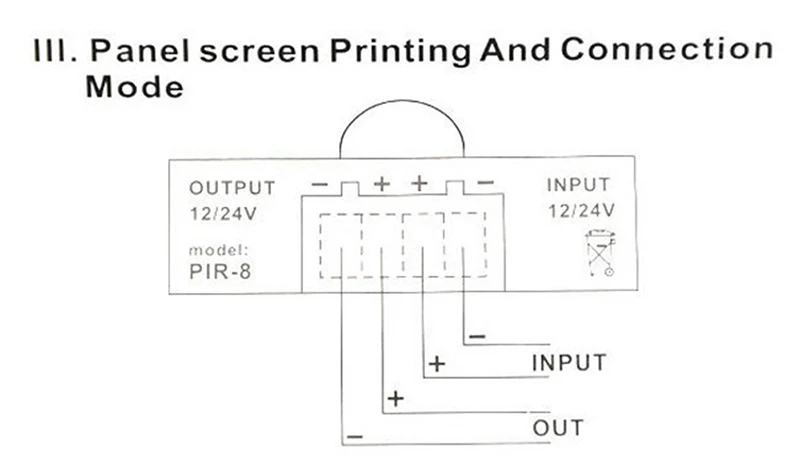

the left is “OUTPUT 12/24V”,it connects led strip ,
the right is “INPUT12/24V”,it connects the DC wire and power supply ,
also ,the “+” “-” as the order is “- + + -“from left to right ,
the red wire is “+”,
the black wire is “-”.
1. lead wire should be connected correctly according to colors that connecting diagram offers.
2.When input voltage 12-24V,controller work normal.

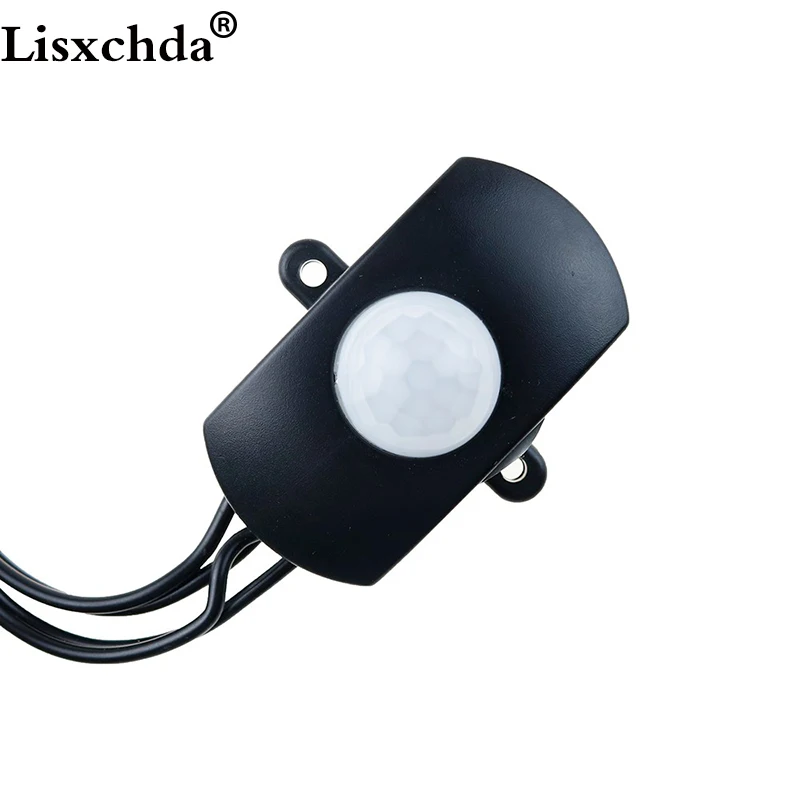

B style:
1.Passive Infrared Sensor
2.Operating Voltage: DC5V ~ 24V
3.Load Current: 5A
4.Delay Time: 5~10 Seconds, adjustable
5.Detecting Range: 120°
6.Detecting Distance: <8M, adjustable
7.Size: 50 * 26 * 21.5mm / 1.96 * 1.02 * 0.84″
8.Trigger Way: Continuous triggering
9.Light Sensor: 10LUX
10.Color: Black
Automatic Induction: When people enter into the range of induction, it will output a voltage equal to input voltage, after the delay time, it will output 0V; during the delay time if motion detected, the delay time will reset, and start a new delay time
During the lighting, every effective human activities will cause delay sensor switch extended a period of time automatically
1.Don’t exposed to direct sun light or lighting, big wind, near a heater or air condition
2.Don’t fix it at a place where there are obstructing material (eg. Glass, dense clothes) which IR cannot get though
3.Don’t fix it in strong shock or vibration environment
4.The PIR Sensor requires a “warm-up time” in order to function properly, about 10s to1min,depend on the delay time; during this time, the signal triggered by the module is not stable, after one minute, it will be ready
5.The sensitivity for left-right direction is better than up-down direction, make sure the installation direction is left-right

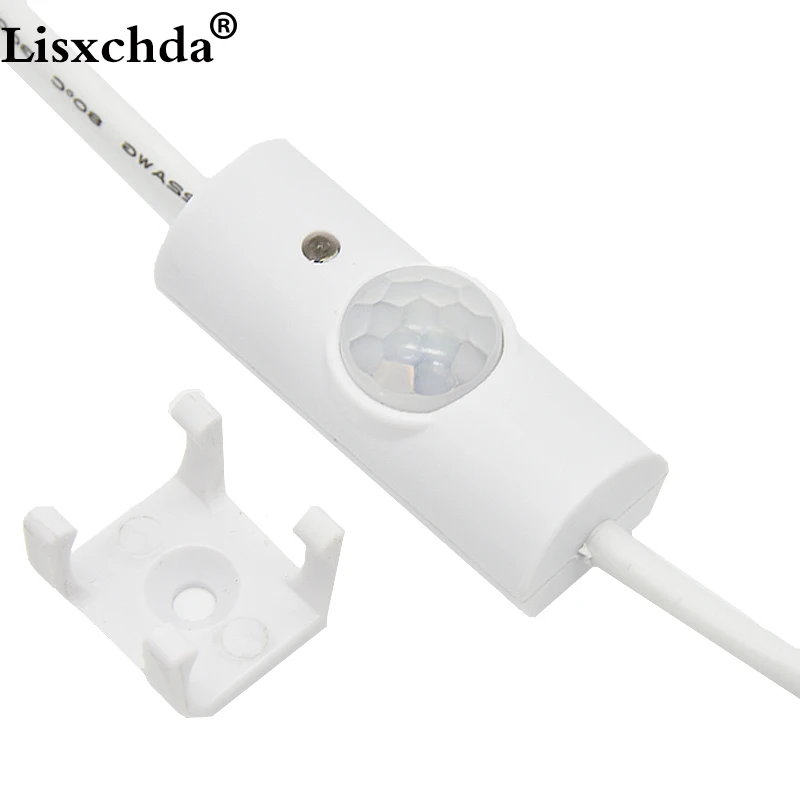

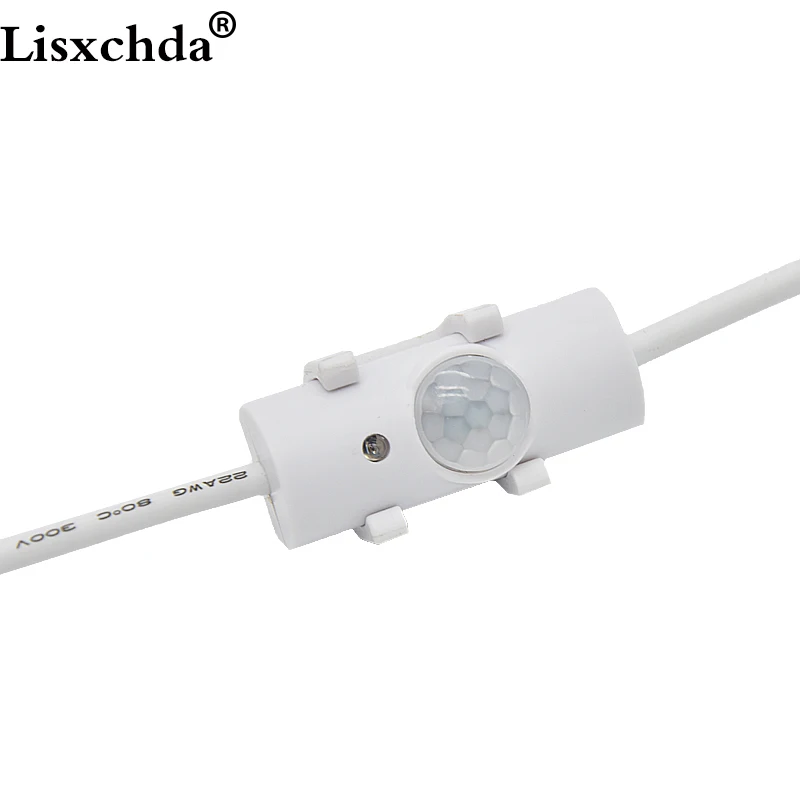

C style:
     The human body is an infrared detection sensor switch controller, the use of infrared detection control the load of the switch.Users according to actual needs, the human body sensors installed in the appropriate environment
PIR(Passive infrared) sensor is pyroelectric device can detect human movement by detecting Infrared ray emitted
by human body.
Operating voltage is DC 5-24V, and output voltage is equal to input voltage. High sensitivity, easy for installing.
Widely used on the Motion-activated lighting, LED strips Security System, automatic sensory device and more.
Description PIR sensor
Operating voltage DC 5-24V
Output voltage Equal to input voltage
Load current <3A
Static power loss ≤ 60 uA
Delay time Default setting 3-5seconds
light sensor no
Detecting range ≤ 110 degrees cone angle, ≤4M
Trigger way continuous triggering
Blockade time: 1-2 seconds
size:40*20*11 mm

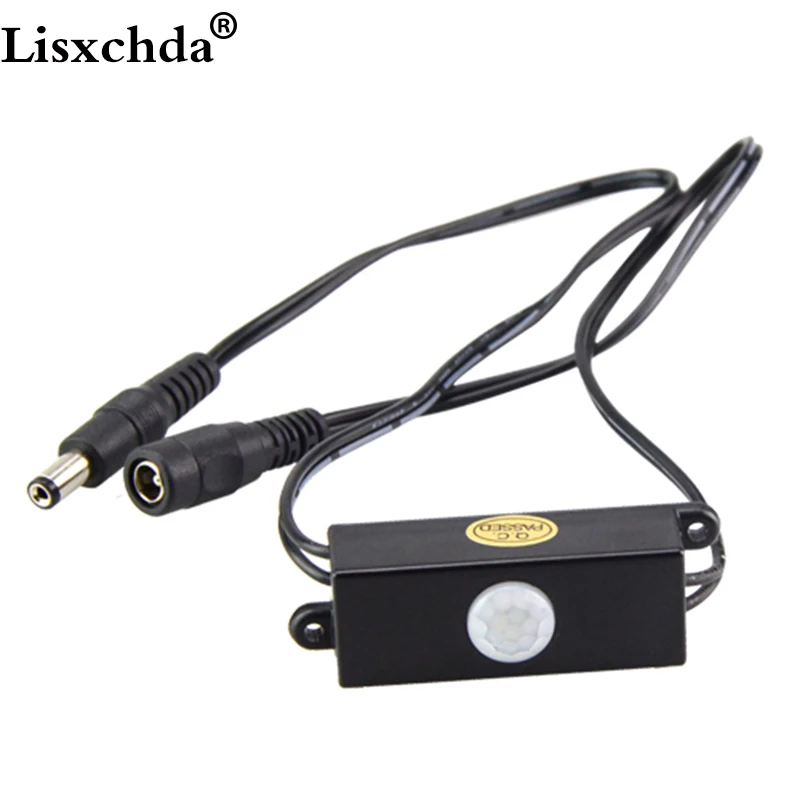

D style:
1.Passive Infrared Sensor
2.Operating Voltage: DC12V ~ 24V
3.Load Current: 5A
4.Delay Time: 5~10 Seconds, adjustable
5.Detecting Range: 120°
6.Detecting Distance: <8M, adjustable
7.Trigger Way: Continuous triggering
8.Light Sensor: 10LUX
9.Color: white
