Step1,Search and download“IP Pro” on APP store/google play
Step2,Intall “IP Pro” APP and open it.Click “Local”
Step3,Click “+” on the right top of the APP,Click “Add device by ID”
Step4,Inpt the cloud ID (Demo ID:977689561) ,then submit
Step5,Enjoy Live video
1,HD 1080P Resolution
2,Wireless connection between NVR and IPC
3,Waterproof IP camera can used indoor/outdoor
4,Plug and play,Easy mobile access(support iPhone,Android)
5,Motion Detection,e-mail alert
1 x 4CH H.264 Wireles Network Digital Video Recorder(Wireless NVR)
4 x Colour CMOS 2.0MP IR LEDs IP Cameras
4 x 12V 1A Power adapter for Security Cameras
1 x 12V 2A Power Supply for NVR
1 x 3M 9DB Antenna
1 x Mouse
1 x User Manual
***HDD is optional***
|NVR Parameter||IPC Specification|
|Operating System||Embedded linux OS||Operating System||Embedded linux|
|AV(audio/video)||Network Video||4CH||Image Sensor||1/4”Progressive Scan Sensor|
|input||Network Video input||20Mbps broadbank||Audio||NO|
|AV(audio/video)||HDMI input||1ch, resolution: 1024×768, 1336×768,||S/N Ratio||>39.1dB|
|Output||VGA output||1ch, resolution: 1024×768, 1336×768,||Minimun||Color:0.1 Lux|
|AV CODEC||Video Resolution||DI/720P/960P||Lens||3.6mm|
|Video Control||Video/Capture mode||Maual.Time.Motion.Alarm||White Balance||Auto|
|Playback mode||Real time .Routine.Event||Day&Night||Auto/Color/BW|
|Max Capacity||4 TB at most for each||Privacy Masking||4 Zone Selectable|
|External Interface||Network Interface||1 adaptable RJ45 10M/100M,||Frame Specification||Three Streaming|
|2 WIFI interface||H.264 1920×1080/640×480|
|USB Interface||1 USB 2.0|
|Network Control||Protocol||UPnP (play&plug) SMTP(email survice)||‘@30fps or below|
|PPPoE (dial-up).DHCP (Automatically||Anti-thunder Level||Standard IEC6100-4-5|
|Obtain an Ip address),etc…||Power Input||DC12V-1A|
|Others||Power||DC 12V 2A||Consumption||≤6W|
|Consumption(NO HDD)||≥5W||Interface||RJ45/WIFI 802.11b/g/n|
|Working Temperature||-10°—55°||Working T/H||-10° to +50°/30% to80% RH|
|Working Humidity||10%—90%||Storage T/H||-20° to +60°/20% to90% RH|
|Weight(NO HDD)||≤2Kg||Weight||About 500g|
Experience the Stunning Video of your loved one
Experience true 1080P high quality which brings everything back to life whether you
are recording or taking snapshots and no details will make it pass

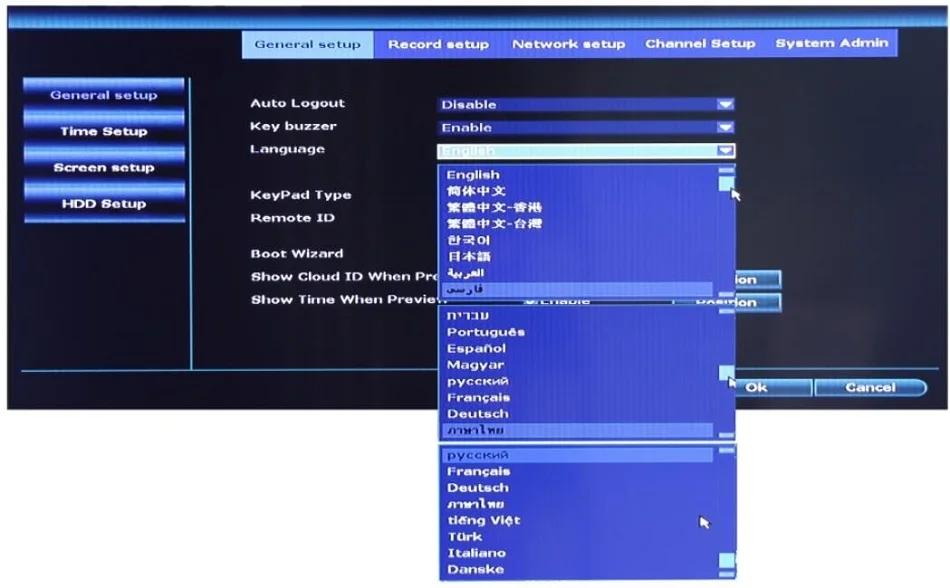

Friendly SW interface, support multi multi-languages
It support English,Russian,French,Turkey,Italy,Spanish,Germany,Korean,Japanese.,etc

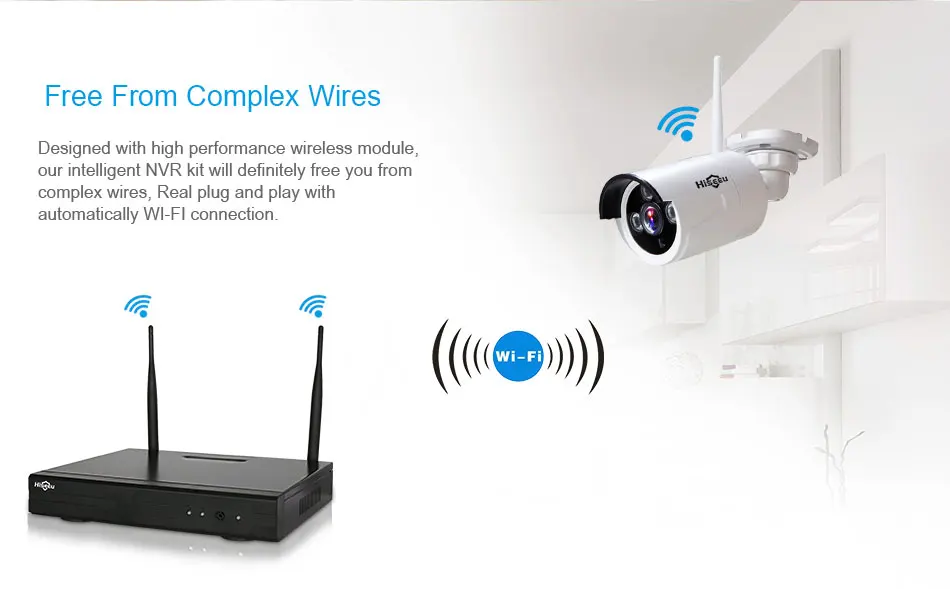

Free From Complex Wires

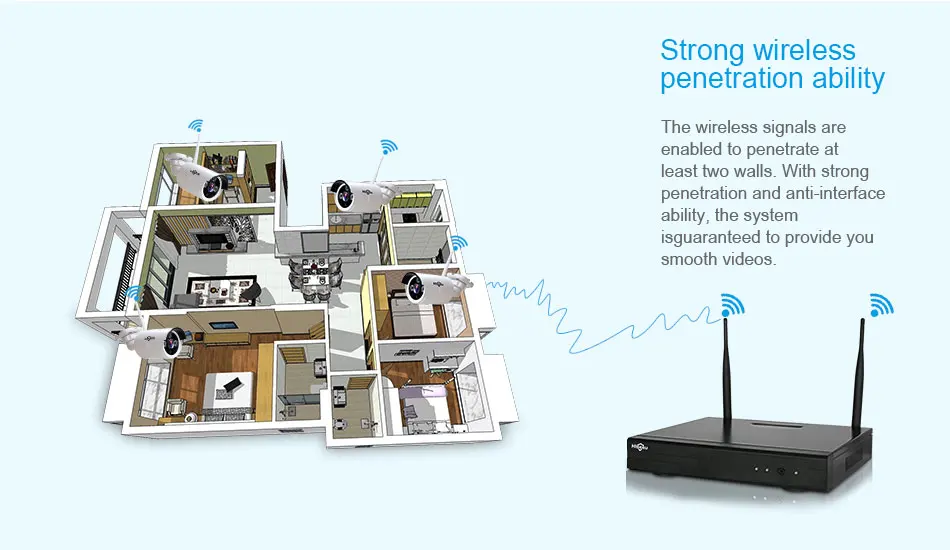

Strong Wireless Penetration Ability
Wireless transmission is 50M (no obstacle)
The farther distance, the weaker signal

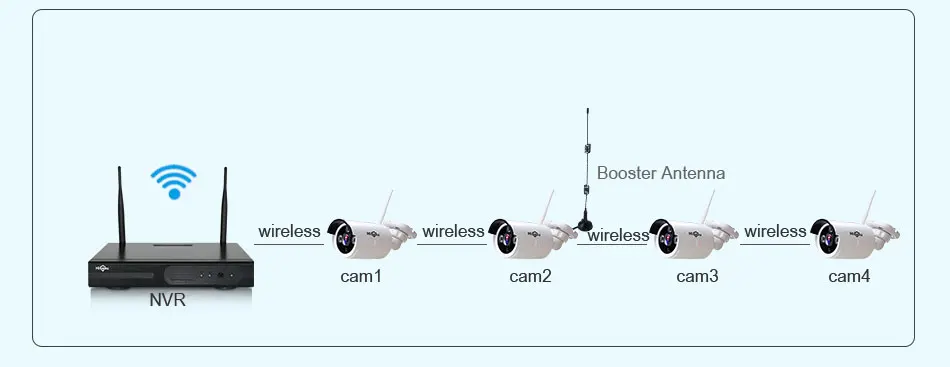

With obstacle? Need longer transmission?
1,Use Booster Antenna to enhance the signal(We send 1pcs Antenna as gift)
2,Modify the connection way to Series Connection
Remote Access brings you peace of mind
Motion Detection & Email Alert
Can set multi motion detection area, Instant email will be sent the time any suspicious movement
is detected by our security system. So defensive measures can be taken before it is too late.

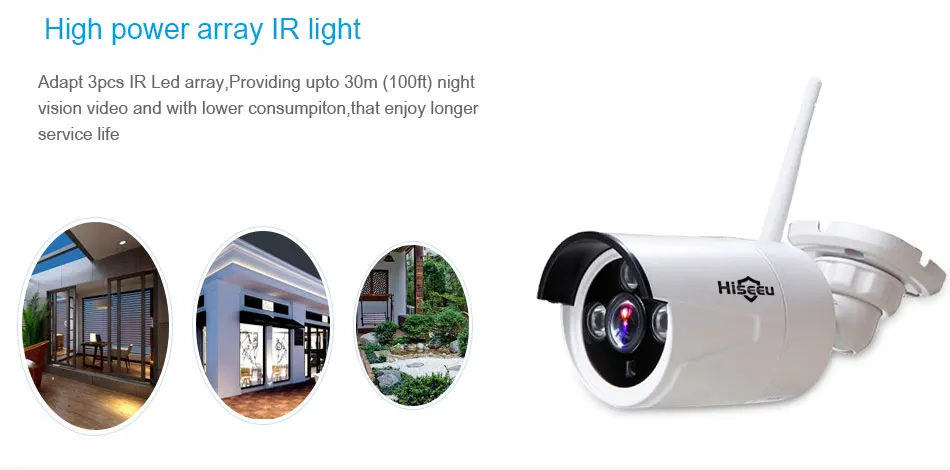

High Power Array IR Led
Adapt 3pcs IR Led array, providing up to 30m (100ft) night vision
video and with lower consumption, that enjoy longer service life.
Easy Installation, no need professional skills
Super easy installation and configurations. Real plug and play, no need of any professional skills,
you can totally do it yourself effortlessly and build your own surveillance system.
Notice:The wireless connection is between camera and NVR,The NVR connect to network need LAN Cable

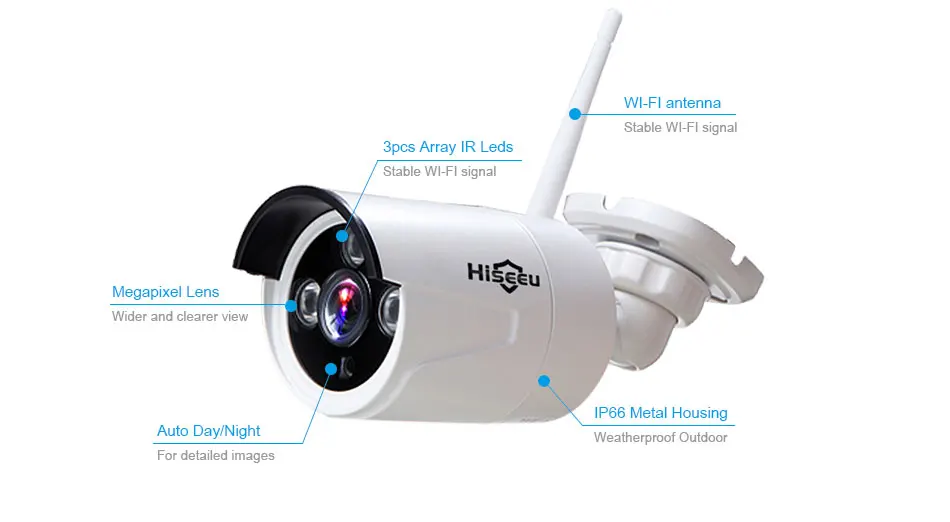

Weatherproof Security Cameras
Suitable for both indoor and outdoor usage.
